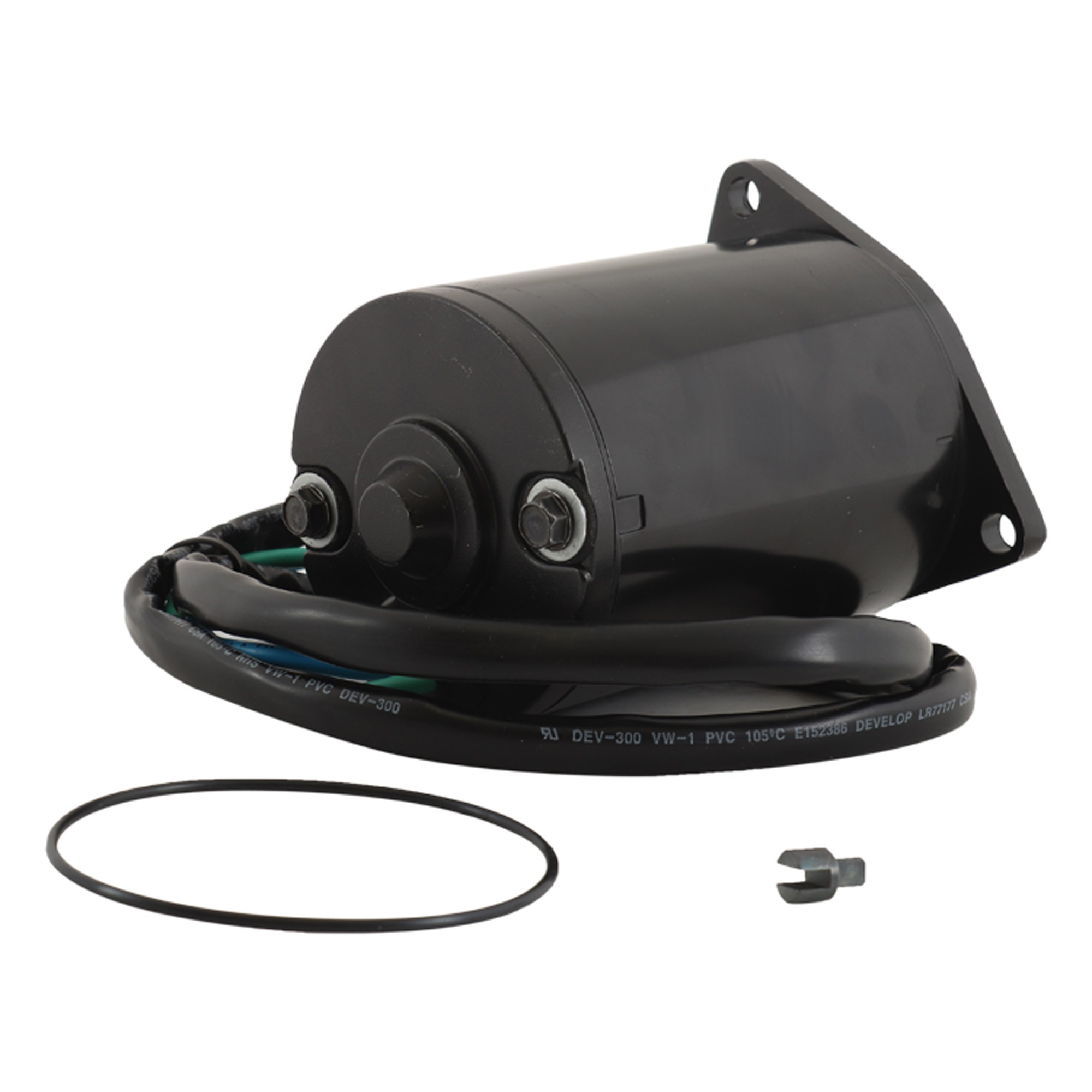

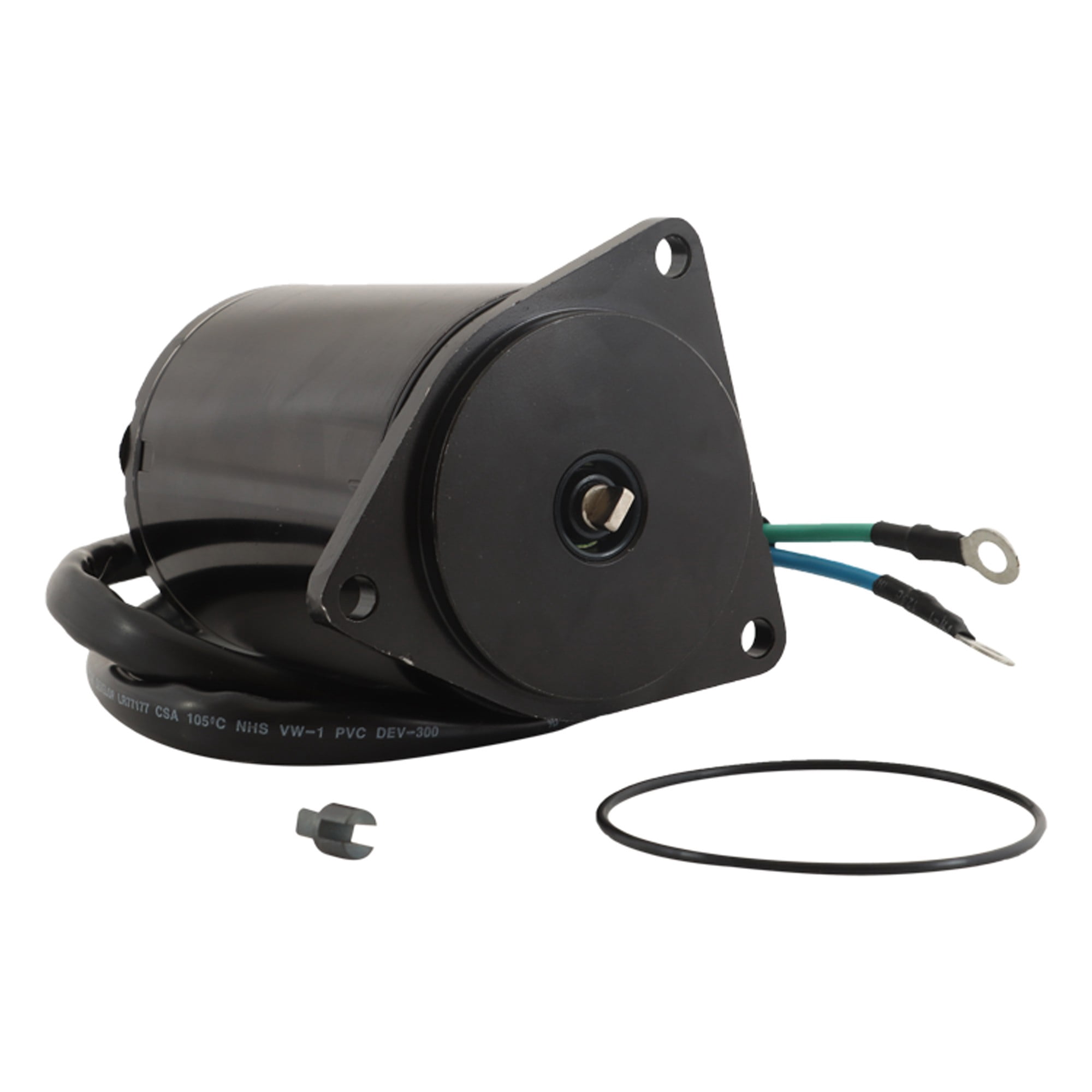

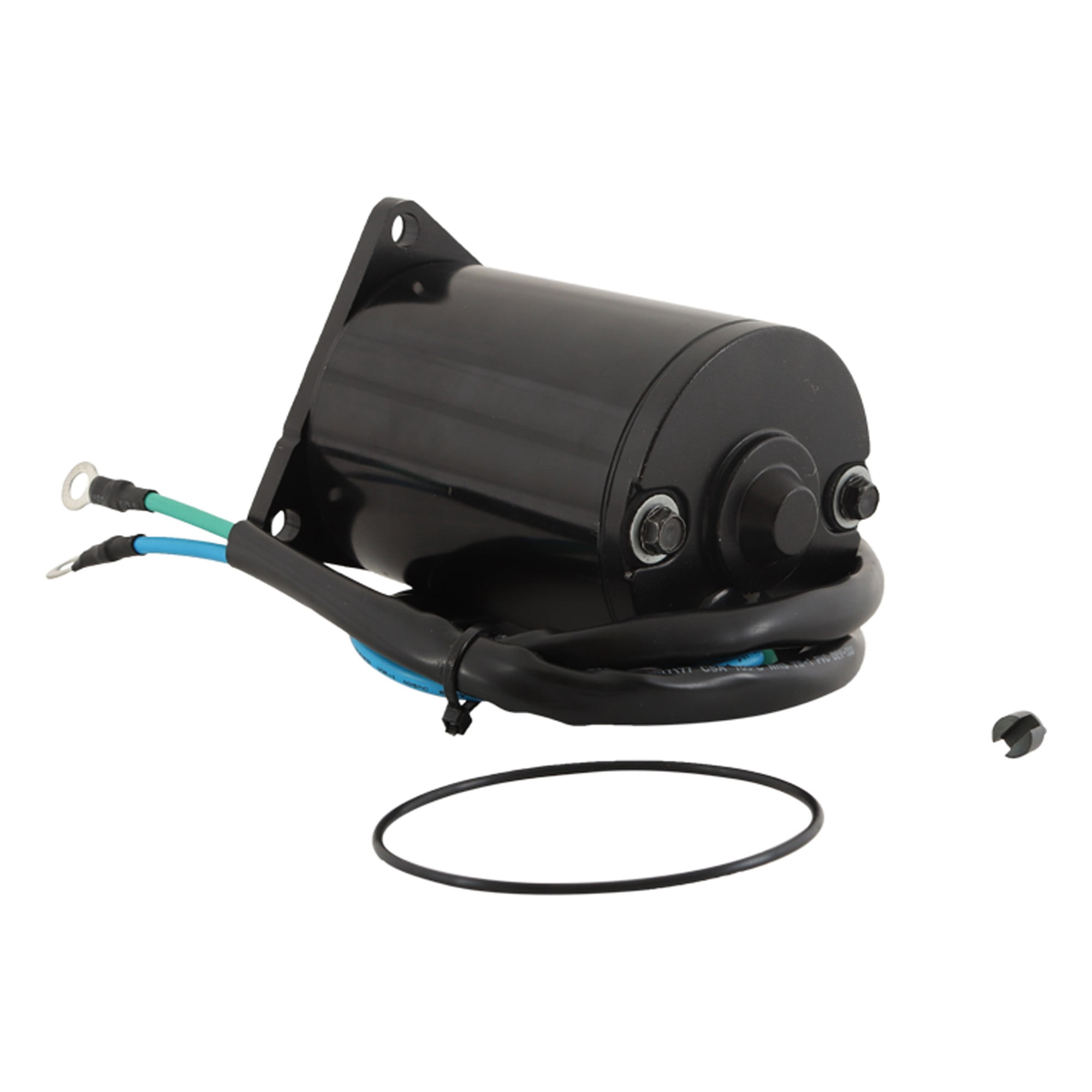

DB Electrical TRM0010 Tilt Trim Motor Compatible With/Replacement For Yamaha 86-95 115-200Hp 6G5-43880-02, 18-6760, 6265

DB Electrical TRM0010 Tilt Trim Motor Compatible With/Replacement For Yamaha 86-95 115-200Hp 6G5-43880-02, 18-6760, 6265<br><br><b>**Verify the part fits before purchasing**</b><p><b>Specs:</b></p><p>Unit Type: Tilt &amp; Trim Motor<br>Voltage: 12<br>Rotation: RE<br>Dimension: Replacement Unit:, OD: 2.52in / 64mm, Shaft OD: 0.315in / 8mm, Length: 5.118in / 130mm, Shaft: 2.5mm Drive Tang, Note: Includes O-Rings and Shaft Adaptor, Note: 2-Wire Configuration, Note: Ring Terminals, Note: (3) 6mm Unthreaded Mtg. Holes, <br>Brief: Yamaha Outboard Motors 115HP - 225HP 1992-96</p><p><b>Replaces OEM Numbers:</b></p><p>API MARINE: PT600NM-3<br>ARCO MARINE: 6265<br>ARROWHEAD: TRM0010<br>EMP PARTS: 4-6760<br>J &amp; N: 430-22029<br>LESTER: 10824, 10849<br>QUICKSILVER: 8M6007569<br>SIERRA MARINE: 18-6760<br>WAI: 10824N<br>YAMAHA: 6G5-43880-02-00</p><p><b>Compatible With/Replacement For:</b></p><p>YAMAHA 115TJR 1992-1996, 115TLR 1992-1996, 115TXR 1992-1995, 130TLR 1992-1996, 130TXR 1992-1995, 150TLR 1992-1995, 150TXR 1992-1995, 175TLR 1992-1995, 175TXR 1992-1995, 200TJR 1992-1995, 200TLR 1992-1995, 200TXR 1992-1995, 225TLR 1992-1995, 225TUR 1995-1995, 225TXR 1992-1995, C115TLR 1992-1996, C115TXR 1992-1996, C150TLR 1996-1996, C150TXR 1996-1996, L130TXR 1992-1993, L130TXR 1995-1996, L150TXR 1992-1995, L200TXR 1992-1995, L225TXR 1994-1994, P115TLR 1993-1996, P150TLR 1992-1995, P175TLR 1994-1995, P200TLR 1992-1995, S115TLR 1996-1996, S115TXR 1996-1996, S130TLR 1996-1996, S130TRX 1996-1996</p>

• Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit: OD: 2.52in / 64mm, Shaft OD: 0.315in / 8mm, Length: 5.118in / 130mm, Shaft: 2.5mm Drive Tang, Note: Includes O-Rings and Shaft Adaptor, Note: 2-Wire Configuration, Note: Ring Terminals, Note: (3) 6mm Unthreaded Mtg. Holes, Brief: Yamaha Outboard Motors 115HP - 225HP 1992-96
• Replaces OEM Numbers: API MARINE: PT600NM-3, ARCO MARINE: 6265, ARROWHEAD: TRM0010, EMP PARTS: 4-6760, J & N: 430-22029, LESTER: 10824, 10849, QUICKSILVER: 8M6007569, SIERRA MARINE: 18-6760, WAI: 10824N, YAMAHA: 6G5-43880-02-00
• Compatible With: YAMAHA 115TJR 1992-1996, 115TLR 1992-1996, 115TXR 1992-1995, 130TLR 1992-1996, 130TXR 1992-1995, 150TLR 1992-1995, 150TXR 1992-1995, 175TLR 1992-1995, 175TXR 1992-1995, 200TJR 1992-1995, 200TLR 1992-1995, 200TXR 1992-1995, 225TLR 1992-1995, 225TUR 1995-1995, 225TXR 1992-1995, C115TLR 1992-1996, C115TXR 1992-1996, C150TLR 1996-1996, C150TXR 1996-1996, L130TXR 1992-1993, L130TXR 1995-1996
• 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
• 100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications
